View your customized Lowe

Bay 20

BAY 20

Take your fishing game to new extremes with the Lowe® center console 20' Bay boat. It's pad hull design delivers peak performance and allows you to run in shallow waters!

Starting at

$42,336*

With Mercury 115 ELPT CT

Save more with our current discounts

As Low as

$401.89*/month

Base Price, $1500.0 down, 8.49%APR for 15 years

115-150

HP Range

8

Max Passengers

19'9"

Overall Length

View Full Specs

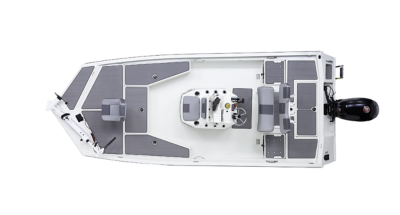

lb-bay20-overhead-floorplan

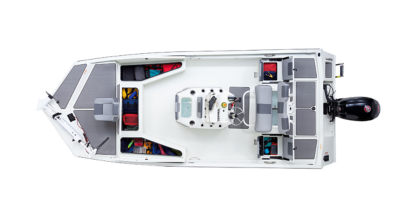

lb-bay20-overhead-storage

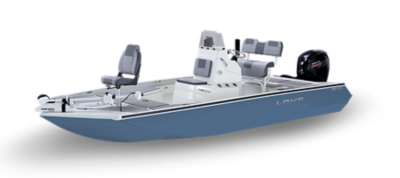

lb-bay20-blue-london-model_default

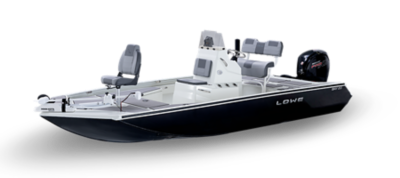

lb-bay20-black-corrected-option_visualization

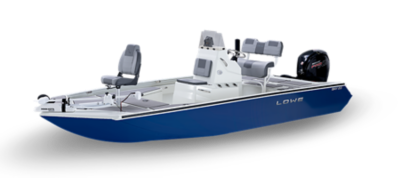

lb-bay20-blue-corrected-option_visualization

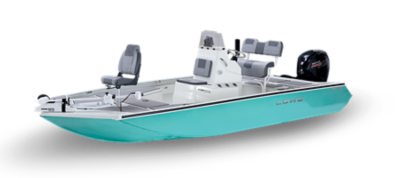

lb-bay20-seafoam-green-corrected-option_visualization
lb-bay20-blue-london-option_visualization

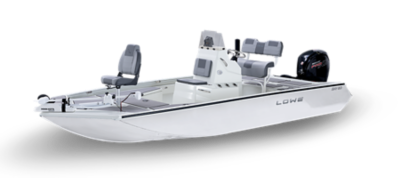

lb-bay20-bright-white-option_visualization
lb-bay20-harbor-metallic-corrected-option_visualization
lb-bay20-marine-teal-corrected-option_visualization
lb-bay20-infused-red-black-corrected-option_visualization

Take your fishing game to new extremes with the Lowe® center console 20' Bay boat. It's pad hull design delivers peak performance and allows you to run in shallow waters!

Take your fishing game to new extremes with this superior-value bay boat. A high-performance aluminum pad hull and well-equipped center console layout deliver maximum fishability and easy handling. The 20 Bay is designed to keep you safe, dry and ready no matter the water conditions, with a seamless cockpit finish and injected foam construction for a smooth, stable ride. And with premium features including a huge 30-gallon livewell and 16-gallon baitwell, a standard MotorGuide® trolling motor, and an array of available paint and seating options, your prey don't stand a chance. The rugged center console 20 Bay reflects the Lowe® expert craftsmanship and proud heritage of delivering top quality to serious anglers.

SPECIFICATIONS & FEATURES

Fuel Capacity

30 gal

113.56 l

Max HP Capacity

150 HP

111.85 kw

Max Weight Capacity

1,950 lbs

884.50 kg

Beam

95"

241.30 cm

Chine Width

72"

182.88 cm

Cockpit Depth

19"

48.26 cm

Hull Gauge

.125"

3.18 mm

Side Depth

24"

58.42 cm

Transom Height

21.5"

54.61 cm

Overall Boat Length

19'9"

6.02 m

Max Person Weight

1,160 lbs

526.17 kg

Approx Basic Hull Weight

1,549 lbs

702.61 kg

HP Range

115-150

Max Passengers

8

Overall Length

19'9"

6.02 m

Fuel Capacity

30 gal

113.56 l

Max HP Capacity

150 HP

111.85 kw

Max Weight Capacity

1,950 lbs

884.50 kg

Beam

95"

241.30 cm

Chine Width

72"

182.88 cm

Cockpit Depth

19"

48.26 cm

Hull Gauge

.125"

3.18 mm

Side Depth

24"

58.42 cm

Transom Height

21.5"

54.61 cm

Overall Boat Length

19'9"

6.02 m

Max Person Weight

1,160 lbs

526.17 kg

Approx Basic Hull Weight

1,549 lbs

702.61 kg

Mooring cleats (6)

Glove box w/storage

Baitwell (16 gallon)

Fiberglass center console w/black steering wheel & windscreen

Switch panel w/toggle switches

Swim Ladder

Cup holders (3)

1 Fold-down fishing seat w/stainless steel pedestal base

Console forward fixed passenger seat w/seat & back pads

Leaning post w/cushion & foot rest

Rear deck jump seats w/under seat storage

1 Pro Fishing Seat w/pedestal base

Gauge panel w/Speedometer, tachometer, fuel & trim

Grab handles (stern deck & fwd console) (4)

Aft recirculated livewell (30 gallon)

6 Console Rod Holders

Locking bow port & starboard rod lockers (8' rod length)

Under console battery storage

Water Resistant Front deck storage compartments

Under jump seats (2 compartments)

MotorGuideÆ VariMax V55SW Trolling Motor

Mooring cleats (6)

Glove box w/storage

Baitwell (16 gallon)

Fiberglass center console w/black steering wheel & windscreen

Switch panel w/toggle switches

Swim Ladder

Cup holders (3)

1 Fold-down fishing seat w/stainless steel pedestal base

Console forward fixed passenger seat w/seat & back pads

Leaning post w/cushion & foot rest

Rear deck jump seats w/under seat storage

1 Pro Fishing Seat w/pedestal base

Gauge panel w/Speedometer, tachometer, fuel & trim

Grab handles (stern deck & fwd console) (4)

Aft recirculated livewell (30 gallon)

6 Console Rod Holders

Locking bow port & starboard rod lockers (8' rod length)

Under console battery storage

Water Resistant Front deck storage compartments

Under jump seats (2 compartments)

MotorGuideÆ VariMax V55SW Trolling Motor

Boat Color

Bright White Poly Interior w/ Metallic Black Hull

lb-bright-white-interior-poly-metallic-balck-hull

Bright White Poly Interior w/ Metallic Blue Hull

lb-bright-white-interior-poly-metallic-blue-hull

Bright White Poly Interior w/ Seafoam Green Hull

lb-bright-white-interior-poly-seafoam-green-hull

Bright White Poly Interior w/ Blue London Hull

lb-bright-white-interior-blue-london-option_default

Bright White Poly Interior w/ Bright White Hull

lb-bright-white-interior-ply-bright-white-hull

Custom Graphic

Harbor Metallic/Black Graphic (Available with all Hull Colors)

lb-graphic-harbor-metallic-option_default

Marine Teal/White Graphic (Only available with Metallic Black Hull or Bright White Hull)

lb-graphic-marine-teal-option_default

Infused Red/Black Graphic (Only available with Metallic Black Hull or Bright White Hull)

lb-graphic-infused-red-black-option_default

Engine

Mercury® 115 ELPT Pro XS Command Thrust FourStroke

Mercury® 115 ELPT Command Thrust FourStroke

Mercury® 150L Pro XS FourStroke

lb-150hp-pro-xs-option_detail

Packages

Stainless Steel Package

Saltwater Package

Console & Instrumentation

Tilt Steering

Hydraulic Steering w/Tilt

Canvas

Bimini Top - Black

Ratchet Cover w/Trolling Motor w/Ladder-Dealer Installed

Ratchet Mooring Cover w/out Trolling Motor-Dealer Installed

Flooring

Full Reflex Liner - Gray w/ Black

Seating

Deluxe Centric Pedestal Seats-Gray-Upgrade

Deluxe Leaning Post Upgrade - Gray

Fishing

Center Console Tackle Storage

Delete Std Trolling Motor-Varimax V55SW 50"55#12V

Minn Kota® Riptide Max 52"24V Trolling Motor-Exchange

Lowrance® Ghost 52" Trolling Motor 24 Volt with 24V/6 Gauge Harness

MotorGuide® Xi3-70SW 54"24V Trolling Motor-Exchange

Eagle 5 Fishfinder-Dealer Installed

Active Target Sonar-Dealer Installed

Lowrance® Elite FS 7 Fishfinder-Dealer Installed

Accessories

2-Bank Battery Charger-Factory Installed

3-Bank Battery Charger-Factory Installed

Step Box

1st Mate Man Overboard System

6" Manual Jack Plate

10" Hydraulic Atlas Jack Plate

Mercury® Vessel View Mobile-20

Trailer

Aluminum Trailer, disc brakes, swing tongue, vinyl bunks, 3100lb capacity

Aluminum tandem axle trailer, disc brakes, swing tongue, vinyl bunks, 5000lb capacity

Aluminum tandem axle trailer, tandem disc brakes, swing tongue, vinyl bunks, 5000lb capacity

Trailer Accessories

Spare Tire - Galvanized

Spare Tire - Galvanized

Ratchet tie downs (1 pair)

Trailer Transom Tie Down

Boat Color

Bright White Poly Interior w/ Metallic Black Hull

lb-bright-white-interior-poly-metallic-balck-hull

Bright White Poly Interior w/ Metallic Blue Hull

lb-bright-white-interior-poly-metallic-blue-hull

Bright White Poly Interior w/ Seafoam Green Hull

lb-bright-white-interior-poly-seafoam-green-hull

Bright White Poly Interior w/ Blue London Hull

lb-bright-white-interior-blue-london-option_default

Bright White Poly Interior w/ Bright White Hull

lb-bright-white-interior-ply-bright-white-hull

Custom Graphic

Harbor Metallic/Black Graphic (Available with all Hull Colors)

lb-graphic-harbor-metallic-option_default

Marine Teal/White Graphic (Only available with Metallic Black Hull or Bright White Hull)

lb-graphic-marine-teal-option_default

Infused Red/Black Graphic (Only available with Metallic Black Hull or Bright White Hull)

lb-graphic-infused-red-black-option_default

Engine

Mercury® 115 ELPT Pro XS Command Thrust FourStroke

Mercury® 115 ELPT Command Thrust FourStroke

Mercury® 150L Pro XS FourStroke

lb-150hp-pro-xs-option_detail

Packages

Stainless Steel Package

Saltwater Package

Console & Instrumentation

Tilt Steering

Hydraulic Steering w/Tilt

Canvas

Bimini Top - Black

Ratchet Cover w/Trolling Motor w/Ladder-Dealer Installed

Ratchet Mooring Cover w/out Trolling Motor-Dealer Installed

Flooring

Full Reflex Liner - Gray w/ Black

Seating

Deluxe Centric Pedestal Seats-Gray-Upgrade

Deluxe Leaning Post Upgrade - Gray

Fishing

Center Console Tackle Storage

Delete Std Trolling Motor-Varimax V55SW 50"55#12V

Minn Kota® Riptide Max 52"24V Trolling Motor-Exchange

Lowrance® Ghost 52" Trolling Motor 24 Volt with 24V/6 Gauge Harness

MotorGuide® Xi3-70SW 54"24V Trolling Motor-Exchange

Eagle 5 Fishfinder-Dealer Installed

Active Target Sonar-Dealer Installed

Lowrance® Elite FS 7 Fishfinder-Dealer Installed

Accessories

2-Bank Battery Charger-Factory Installed

3-Bank Battery Charger-Factory Installed

Step Box

1st Mate Man Overboard System

6" Manual Jack Plate

10" Hydraulic Atlas Jack Plate

Mercury® Vessel View Mobile-20

Trailer

Aluminum Trailer, disc brakes, swing tongue, vinyl bunks, 3100lb capacity

Aluminum tandem axle trailer, disc brakes, swing tongue, vinyl bunks, 5000lb capacity

Aluminum tandem axle trailer, tandem disc brakes, swing tongue, vinyl bunks, 5000lb capacity

Trailer Accessories

Spare Tire - Galvanized

Spare Tire - Galvanized

Ratchet tie downs (1 pair)

Trailer Transom Tie Down


PHOTO GALLERY

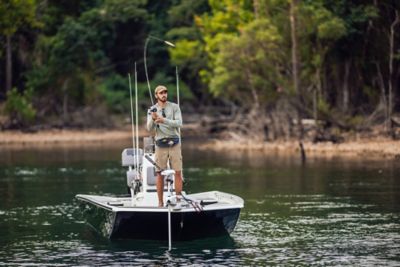

  • 24_LB_Bay20_4B9A1748_FS_c-LR
  • 24_LB_Bay20_4B9A1854_DT_c-LR

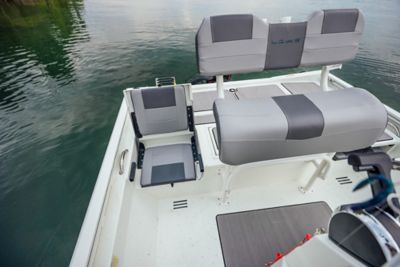

  • 24_LB_Bay20_4B9A1866_DT_c-LR
  • 24_LB_Bay20_4B9A1863_DT_c-LR
  • 24_LB_Bay20_L1151247-RN_c-LR

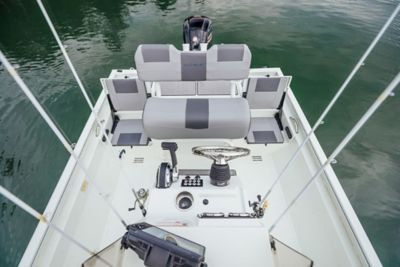

  • 24_LB_Bay20_4B9A1874_DT_c-LR

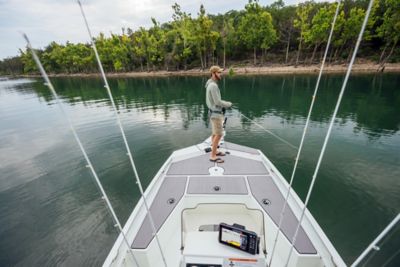

  • 24_LB_Bay20_4B9A1918_DT_c-LR

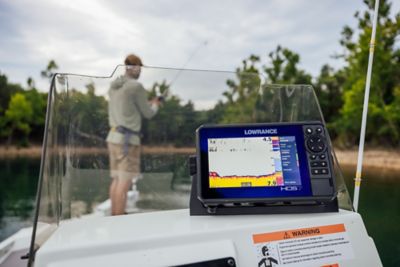

  • 24_LB_Bay20_4B9A1909_DT_c-LR
  • 24_LB_Bay20_L1151162_EN_c-LR
  • 24_LB_Bay20_DJI_0177_RN_c-LR
  • 24_LB_Bay20_L1151133_TR_c-LR
  • 24_LB_Bay20_DJI_0148_AE_c-LR
  • 24_LB_Bay20_4B9A7982-DT-c-LR

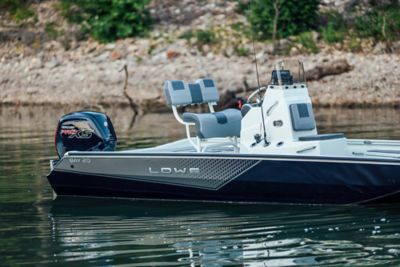

  • 24_LB_Bay20_4B9A7956-2_DT_c-LR
  • 24_LB_Bay20_4B9A1940_DT_c-LR

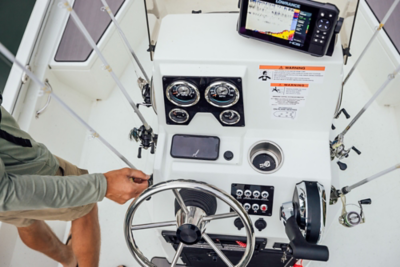

  • 24_LB_Bay20_4B9A1959_DT_c-LR

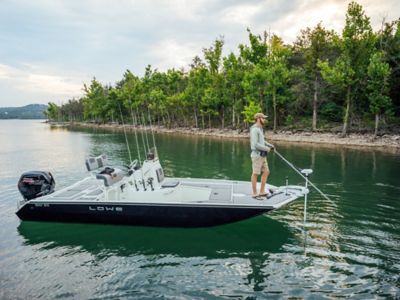

  • 24_LB_Bay20_B0099267_FS_c-LR

REVIEWS


Lowe_Warranty_Hero_2000x828
WHAT'S BETTER THAN A GREAT BOAT?

A WARRANTY THAT INSPIRES CONFIDENCE

Lowe provides a limited lifetime warranty on hulls and plywood decking. A 3-year limited warranty on components covers you bow to stern. Our warranties are also transferrable to a second owner.

WARRANTY DETAILS
